Inconel vs Titanium Exhaust Systems: A B2B Guide to Material Selection

Introduction

In engine exhaust, everything is about the extremes. An ideal system balances the vicious roar of a high-performance engine with structural integrity that can withstand heat from a furnace. The selection of the material plays a key role in exhaust systems. Currently, Inconel and Titanium claim the throne for world-class machines. A typical exhaust from a high-performance motorsport can reach up to 1000°C. At these temperatures, traditional alloys lose their structural composure and fail.

The rivalry between Inconel and Titanium material is fierce. One provides extraordinary heat resistance, while the other offers weight savings. For B2B buyers, the choice is between “long-term durability” and “immediate sensory experience”. This article is designed to help you come to a logical conclusion about selecting either of the materials for your B2B business needs. It will clarify that “better” depends on operating conditions, cost, and lifecycle needs.

Material Fundamentals: Inconel vs Titanium

To find out why these materials behave differently, we need to dive deep into the atomic and microstructure levels.

Basic Composition and Structure

Inconel is a nickel-based superalloy with a typical composition of 50-70% nickel and 14-30% chromium. Engineers tweak the amounts of molybdenum, iron, and niobium to create different grades of inconel including 600, 601, 625, 718, and X-750. The nickel and chromium give Inconel its stable austenitic crystalline structure, which makes the material resistant to deformation under immense loads.

Titanium alloys such as the Ti-6Al-4V, or referred to as Grade 5, consist of 90% Titanium. The remaining is 5.5-6.75% Aluminum and 3.5-4.5% Vanadium. In comparison to purely austenitic Inconel, Titanium changes from a hexagonal close-packed to a body-centered cubic structure. It has a low atomic weight, which gives it high strength without the density impact.

Thermal and Mechanical Characteristics

The thermal performance is the major differentiating factor between Inconel and Titanium for exhaust systems. Inconel has exceptional heat resistance and creep strength even when the temperature reaches beyond 700°C.

Titanium is known for its impressive strength at room temperature. The tensile strength hovers around 900MPa. However, as the temperature increases above 500°C, the strength starts to plummet. The reason is accelerated oxidation, which causes the material to become brittle.

Mechanically, Titanium is selected for its fatigue resistance in cyclic loading at lower temperatures. Inconel is prized for its high yield strength, such as 517 MPa for Grade 625.

Weight and Density Comparison

In the case of motorsports or aerospace, weight plays a crucial role. Light weight exhaust system leads to improved dynamic response of the vehicle. It lowers the center of gravity and enhances the fuel efficiency.

Titanium becomes the clear winner when it comes to density. Titanium has a 4.5g/cm³ density, whereas Inconel has an 8.7g/cm³ density. The difference leads to a 45-50% weight reduction for an equal volume of the exhaust system.

Importantly, comparing the two materials solely on the basis of density can be misleading. Since Inconel offers higher strength, engineers can use thinner wall sheets of 0.5 to 0.9mm thickness. Through this approach, the Inconel exhaust can reach the same weight as Titanium.

Performance in Exhaust Applications

Exhaust systems are subjected to heat, vibration, fatigue, oxidation, and corrosion. To find the right material for your B2B business, it’s important to evaluate this material, covering all the real-life scenarios the exhaust system will be exposed to.

High-Temperature Resistance

For temperature resistance inconel offers the best stability. If your business involves similar applications to Formula 1 exhausts and aerospace jet engines, then pick Inconel as your material. The temperature in such applications can rapidly reach 800°C. Inconel can handle 1000°C without any sacrifice of strength.

Titanium is limited to 600-800°C. If the temperature of the material reaches a higher temperature in your application, the material will start to soften and oxidize. While Titanium has a higher melting point of 1660°C, Inconel remains much more stable closer to its melting point of 1350°C.

Fatigue and Vibration Resistance

Exhaust systems are subjected to vibration and heat. The hot air that exits through the system results in shaking of the whole assembly. A substandard material may fail through cracking under such conditions. Inconel offers superior creep and fatigue strength, such as 550-650 MPa, for Grade 718. It prevents the material from cracking under cyclic mechanical stresses. In contrast, Titanium offers higher fatigue resistance but at a lower temperature of 600-800°C. At higher temperatures, it becomes brittle, which can cause it to crack.

Another key aspect to consider when it comes to sound is that Inconel possesses distinct resonance frequencies of 260 Hz and 1400 Hz that contribute to its durability. Titanium has 256 Hz and 1630 Hz. These inherent properties make Titanium exhausts have a more crisp engine sound. In comparison, Inconel exhaust is less likely to amplify destructive pitches in certain engine configurations.

Corrosion and Oxidation Behavior

Exhausts contain acidic gases, sulfur, and chlorine, which can interact with the material, leading to degradation. Both Inconel and Titanium have self-protective functions that allow them to handle the harsh exhaust gases, moisture, and road salts. However, their degree of effectiveness against these gases varies.

Inconel relies on the chromium oxide layer for protection. In comparison, Titanium forms the Titanium Dioxide film, which is excellent for marine and humid conditions but less effective against exhaust gases.

Use of Inconel 625 coatings in biomass boilers reduces corrosion weight gain to 1/62 in comparison to standard steels. Similarly, the versatility of Inconel makes it ideal for automotive applications. It prevents the corrosion and pitting caused by road salts and acidic exhaust condensate.

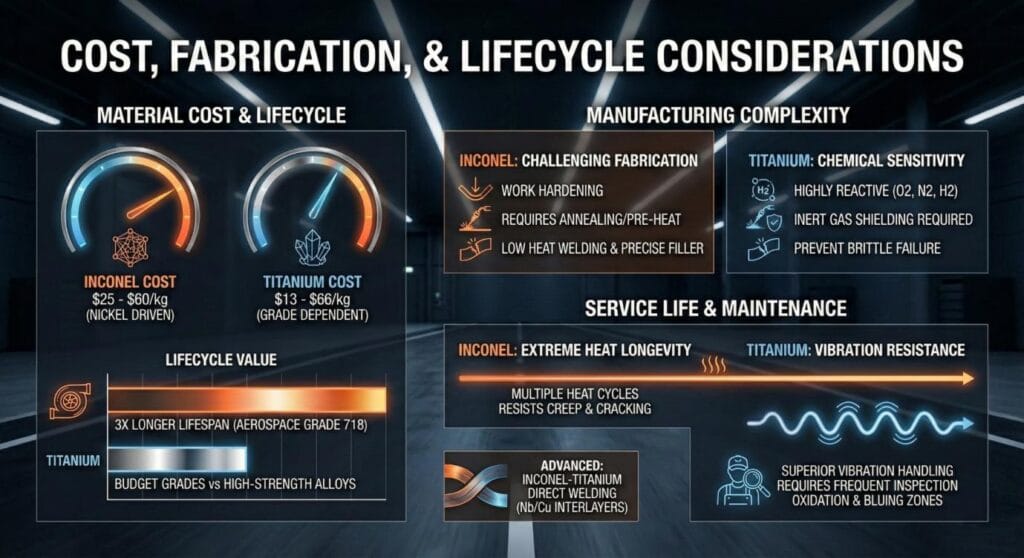

Cost, Fabrication, and Lifecycle Considerations

In space equipment applications, cost, fabrication, and lifecycle considerations may not matter as much. The key is to ensure the material is tough enough to withstand extreme conditions. However, for motorsports and car modification enthusiasts, finding the perfect balance of economics, design, and manufacturing is key to making the product commercially viable.

Material Cost Differences

Creating superalloys is a complex process. It contributes significantly to the Inconel cost, which ranges between $25 to $60 per kg. The pricing also depends on its grade, availability, and regional demand. Nickel in its composition contributes the most to its higher cost.

Titanium costs between $13 and $66 per kg. There are commercially pure Titanium grades, which are budget-friendly, but they lack the strength of Titanium alloy grades like high-strength Grade 5 (Ti-6Al-4V), which can be expensive.

Simply comparing material costs does not cover the impact of fabrication, welding, and potential weight savings. For example, aerospace grade inconel 718 can have a price tag of $60/kg, but its 3x longer lifespan in turbocharger exhaust systems justifies its overall cost of ownership in comparison to budget-friendly alternatives.

Manufacturing and Welding Complexity

Both Inconel and Titanium pose challenges when it comes to producing exhaust systems. The process involves the production of nickel alloy seamless pipe for Exhaust Manifold/Header, Catalytic Converter Housing, Resonator and Muffler, V-Band Clamps, and Hangers. There is lots of bending and welding involved to produce these parts.

Inconel is challenging to fabricate. It hardens as it is bent to form parts. Therefore, the manufacturer will need to anneal or pre-heat the material during the formation process to avoid cracking. Moreover, the welding of Inconel requires very low heat input and precise filler metal matching to maintain corrosion resistance.

Titanium poses a chemical sensitivity challenge. It is highly reactive to oxygen, nitrogen, and hydrogen at welding temperatures. It requires specific inert gas shielding during the welding process to prevent material damage. There is a need for an inert environment at the face and back of the weld to prevent brittle failure.

Valuable Insight: Advanced manufacturing techniques now enable direct welding of Inconel with titanium to produce exhaust systems. By using Niobium/Copper interlayers, engineers prevent brittle intermetallic phases. The result is a high-strength 434MPa bimetallic exhaust parts bond.

Service Life and Maintenance

In extreme heat application Inconel wins for its longevity. It can handle multiple cycles of heat while resisting creep. Which means it won’t deform or crack with time. In comparison, Titanium can handle applications where there is more vibration, but it needs frequent inspection for signs of oxidation and bluing at high temperature zones.

Selecting Exhaust Materials for Industrial and Performance Projects

For B2B buyers, the article has covered material, mechanical/chemical properties, cost, and manufacturing characteristics. Let’s analyze which industries can utilize either of the materials more effectively.

Application-Based Selection: Performance and Industrial Applications

To ensure that we use the appropriate material for our application lets perform a technical analysis of the operating conditions.

1. Operating Environment Analysis: Check whether the application requires continuous operation at high temperatures or short bursts of temperature. We can factor in thermal cycles and the level of vibration the system will endure.
2. Evaluating Thermal Performance: Inconel is preferred due to its capacity to be used in high-temperature applications, as reflected by its thermal stability requirements in case of extreme heat conditions, such as in turbo manifolds or rotary engines.
3. Weight vs. Thermal Limits: Titanium should be used in naturally aspirated racing engines where the exhaust components are not in high heat exposure. The fact that it is lightweight makes it an excellent option, as each gram matters in the handling and speed of the vehicle.
4. Sector-Specific Applications:
   1. Motorsport: Inconel for headers/turbos. Titanium for tailpipes.
   1. Aerospace: Inconel for engine cores. Titanium for structural ducts.
5. Acoustic Properties: In racing applications, the resonance frequencies of both materials can influence the scream of the engine. These are particularly important for driver feedback and brand identity. For enthusiasts, Titanium produces high pitched, crispier sound, whereas inconel produces a deeper and more resonant sound.

Procurement & Supply: The Vistaglobalmetal Advantage

We know that in the case of B2B customers, the quality of superalloys to purchase is no less important than the engineering of the product. Securing a strong supply chain network is associated with the manufacture of high-quality products and the development of a brand name.

1. Strategic Material Sourcing: Vistaglobalmetal can deliver high alloy materials that it knows well to maintain a consistent supply of high-performance alloys. They act as a cushion to their customers in an extremely dynamic market.

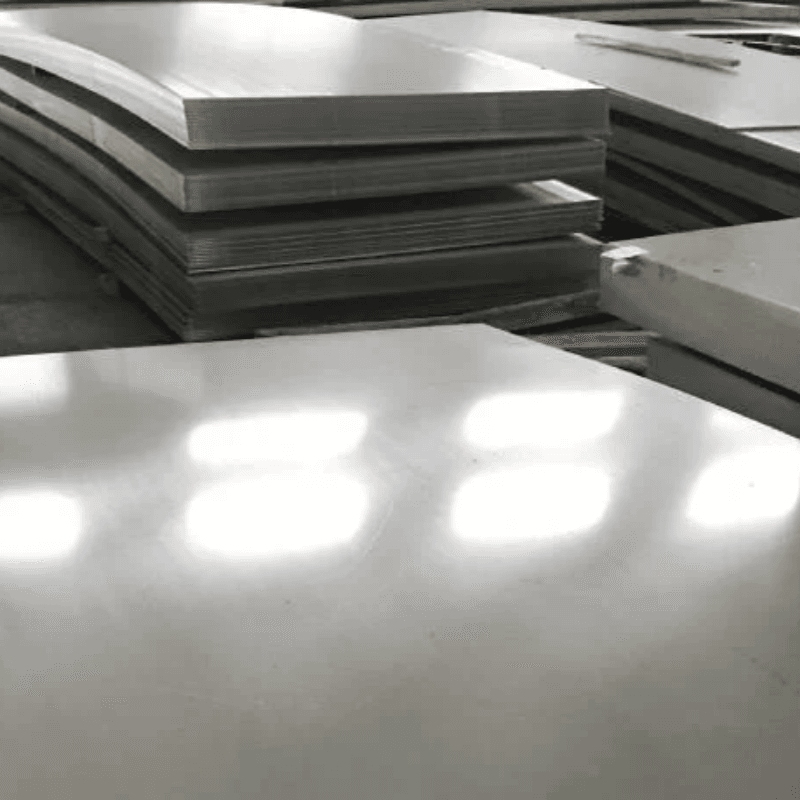

2. Huge Product Portfolio: They manufacture Nickel Alloy pipes, nickel alloy sheet metal, and coils. Their inventory concentration is given to high-demand grades, such as Inconel 625 and 718.
3. Specification-Based Fulfillment: Vistaglobalmetal makes sure that their products match the technical specifications, such as ASTM and AMS, as demanded by exhaust manufacturers. They also make sure that every single product that they deliver has consistent chemical and mechanical characteristics as discussed above.
4. Lifecycle and Logistics Support: They have broad and tailored support on large-scale projects to mitigate risks of operations. In addition, Vistaglobalmetal provides tailored cutting, which includes waterjet cutting and laser cutting services, in order to guarantee minimal scrap waste to exhaust system fabricators.
5. Support on Heavy Industrial Project: Inconel 718 forgings can also be provided by Vistaglobalmetals to serve the purpose of turbine exhausts, for which cast material cannot withstand.

Conclusion

In exhaust systems, Inconel and Titanium achieve different performance goals. Inconel provides strength at high temperatures, and Titanium provides excellent vibrational fatigue resistance. The key is to balance the heat performance and weight optimization for these two materials.

Inconel can work in the harshest of environments with supreme resistance to heat, creep, and corrosion. In comparison, Titanium serves as the ideal solution for weight reduction, where agility and efficiency are key. For B2B buyers, success lies in forming a solid chain of consistent quality supply of these high-grade alloys.

To secure a technologically advanced supply of superior material, contact Vistaglobalmetal today for tailored nickel alloy solutions for your next exhaust project. Visit the website to explore all their options.

FAQ

Q. Is Inconel better than titanium for high-temperature exhaust systems?

Yes, particularly for high-temperature exhaust systems where the material will be subjected to 600°C or higher temperatures. Inconel can maintain creep resistance and structural stability far beyond the temperature at which Titanium will oxidize and become brittle.

Q. Why is Inconel commonly used in racing exhausts?

In performance engines, as in Formula 1 or WEC vehicles, the exhaust gases are at incredibly high temperature and pressure conditions. Inconel’s high fatigue resistance and strength allow the material to work under these severe conditions with intense vibrations without blowing out.

Q. How does weight affect exhaust material choice?

In vehicles, weight plays a critical role in stability and performance. A lighter exhaust as offered by Titanium results in a better power-to-weight ratio, improving acceleration and handling. It lowers the center of gravity. In industrial heavy applications, weight is not a major factor. Therefore, Inconel works best for vibration damping and structural robustness.

Q. Is Inconel harder to weld than titanium?

Yes, but both of them have varying reasons for challenging weld conditions. Inconel can crack if not handled properly during weld. It requires pre-heating before weld and controlled cooling to ensure a nickel matrix. Titanium, on the other hand, requires perfect welding conditions with an inert environment to prevent brittleness.

Q. How should manufacturers choose between Inconel and titanium?

Manufacturers need to evaluate their requirements comprehensively. For high-temperature applications above 700°C, choose Inconel. In saline water or marine application use Titanium. Consider using a mix of two material utilizing Inconel in the high-temperature zone and Titanium at low temperature zone. To be 100% sure of material performance, perform prototyping.
